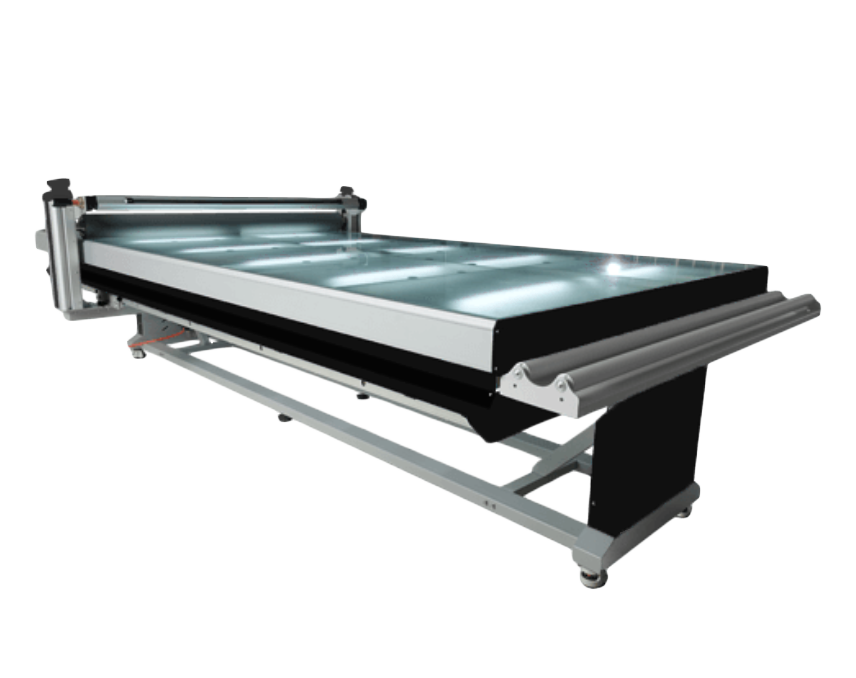

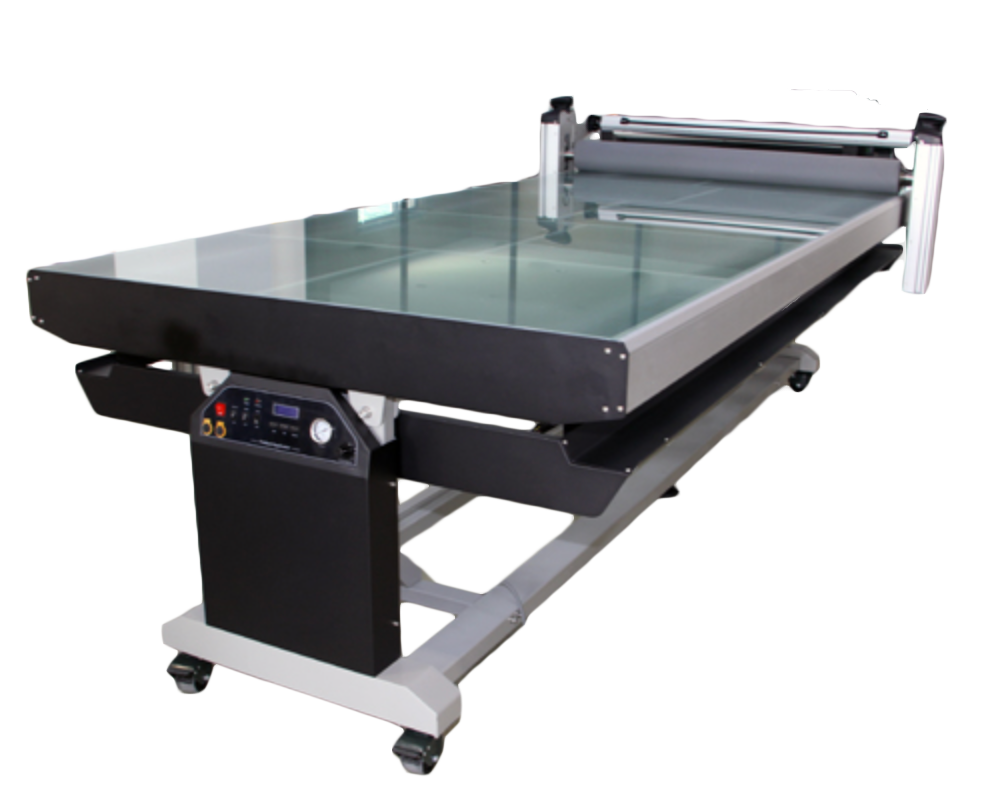

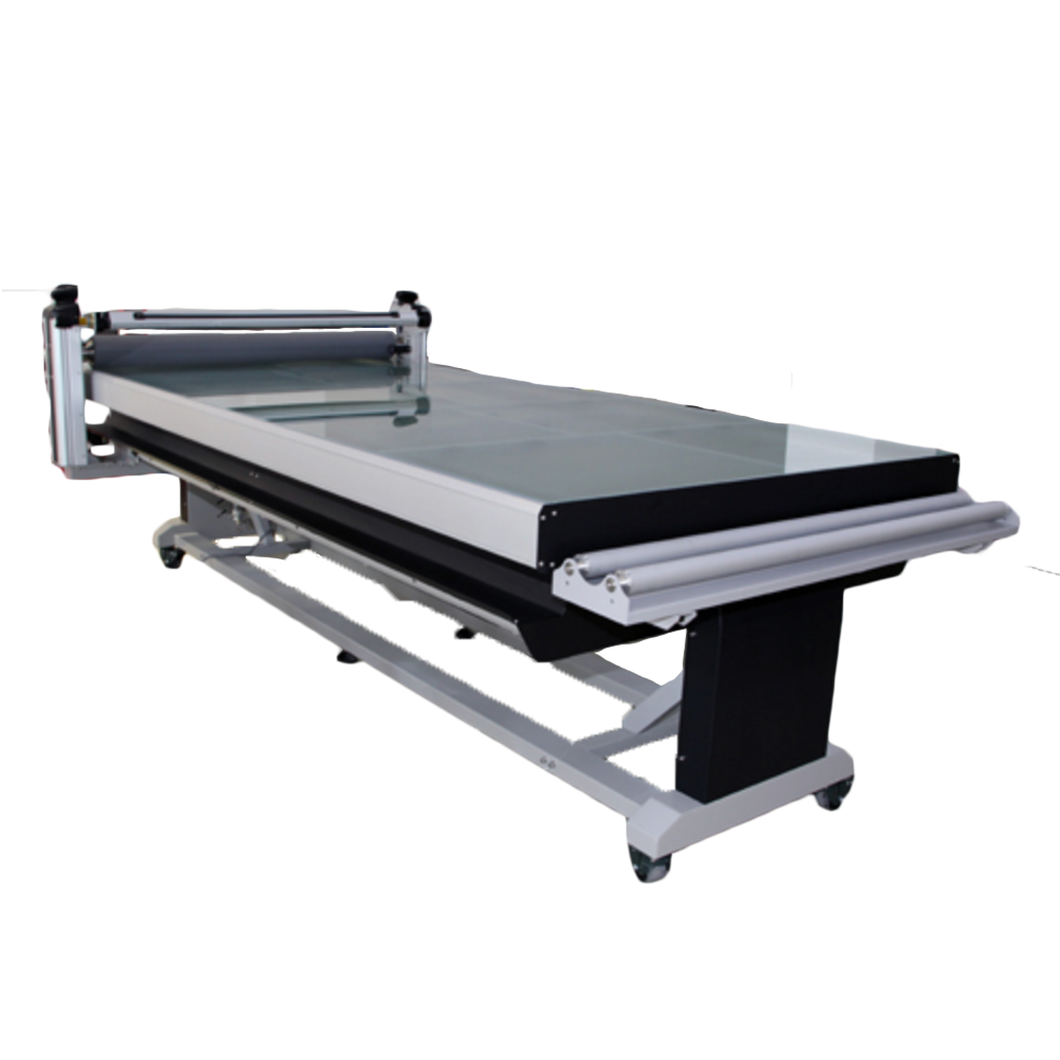

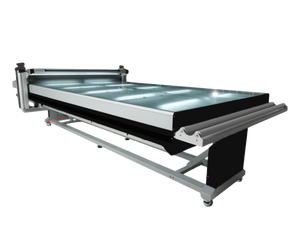

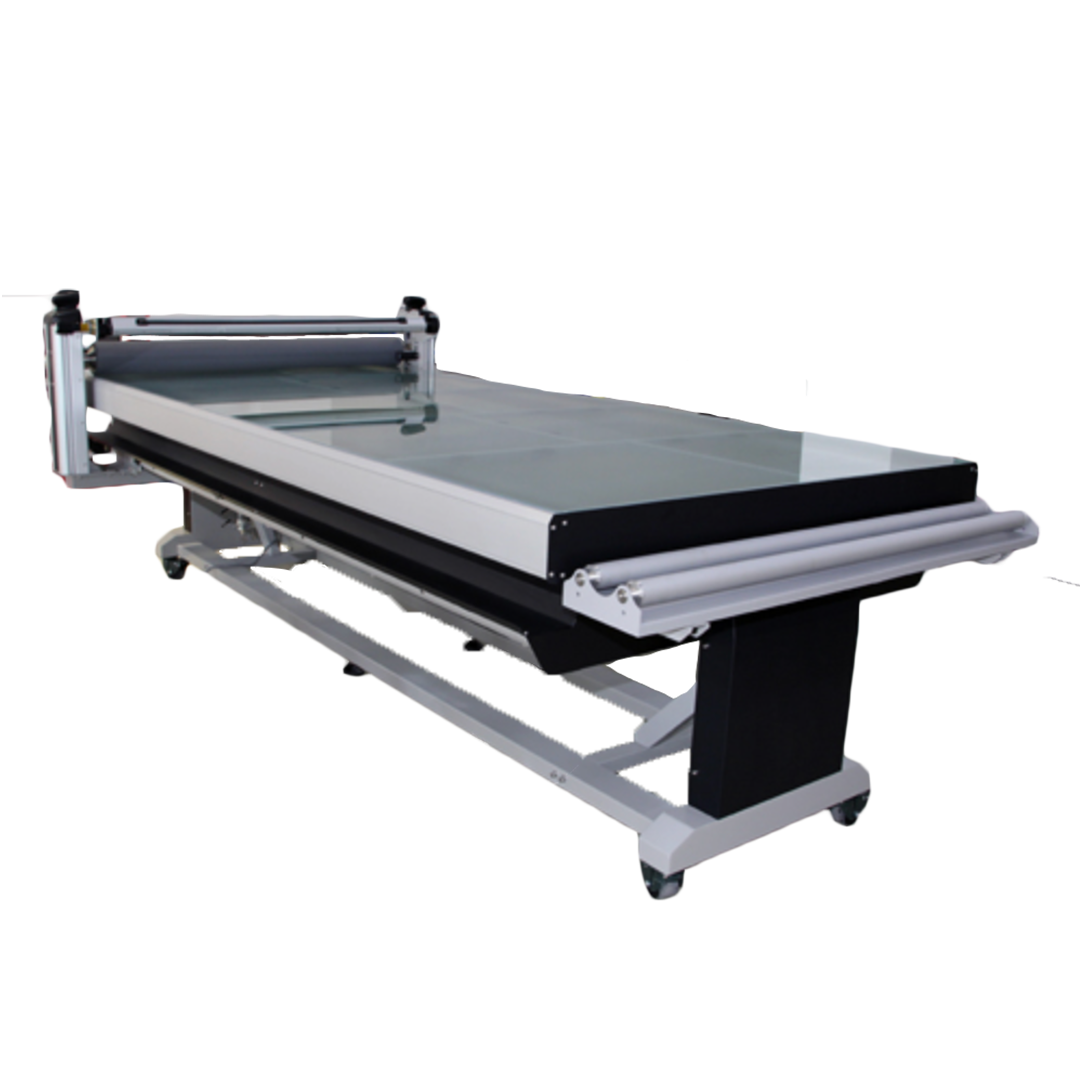

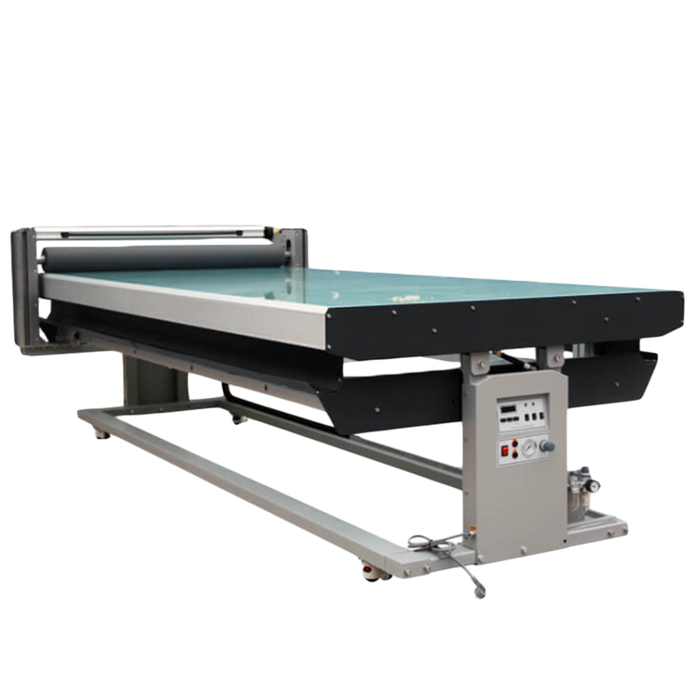

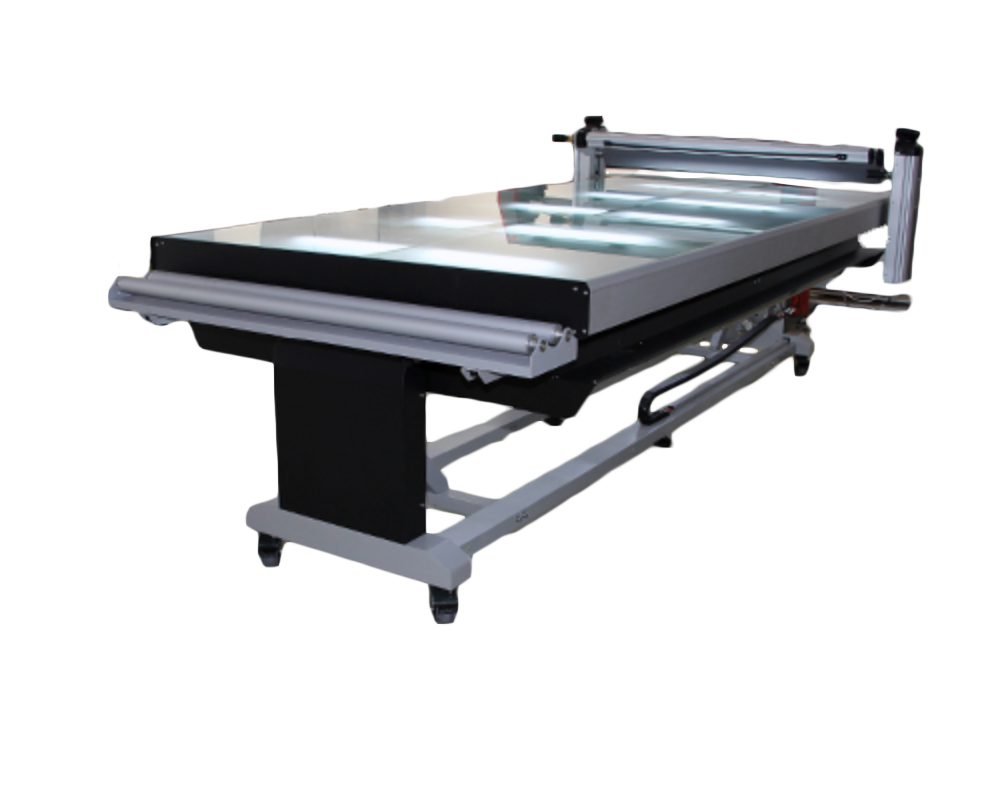

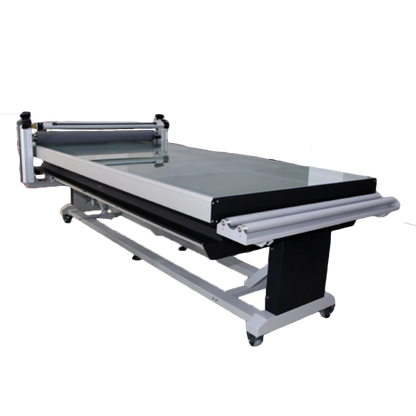

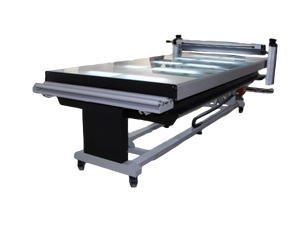

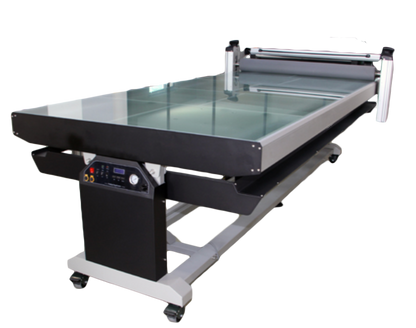

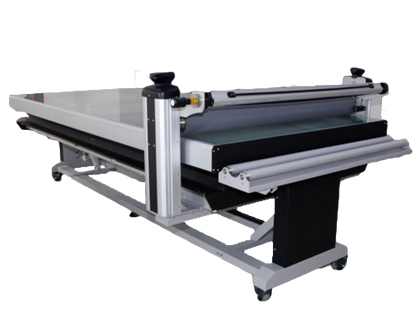

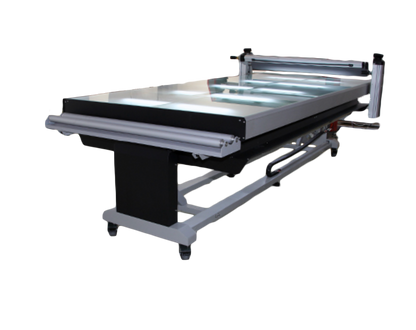

The LIJIE FA 1325-B4 Flatbed Applicator is designed for mounting and laminate loose materials easily. It comes with a tray for the roll of media and cutting mat to protect the working table. To operate the LIJIE FA 1325-B4 Flatbed Applicator, you only need one manpower to apply different types of vinyl to a substrate. Time-saving as compared to the traditional application method. Its equipped with lights and the roller can be automatically adjusted in height to accommodate different media.
|
Machine Size
|
Wooden Case

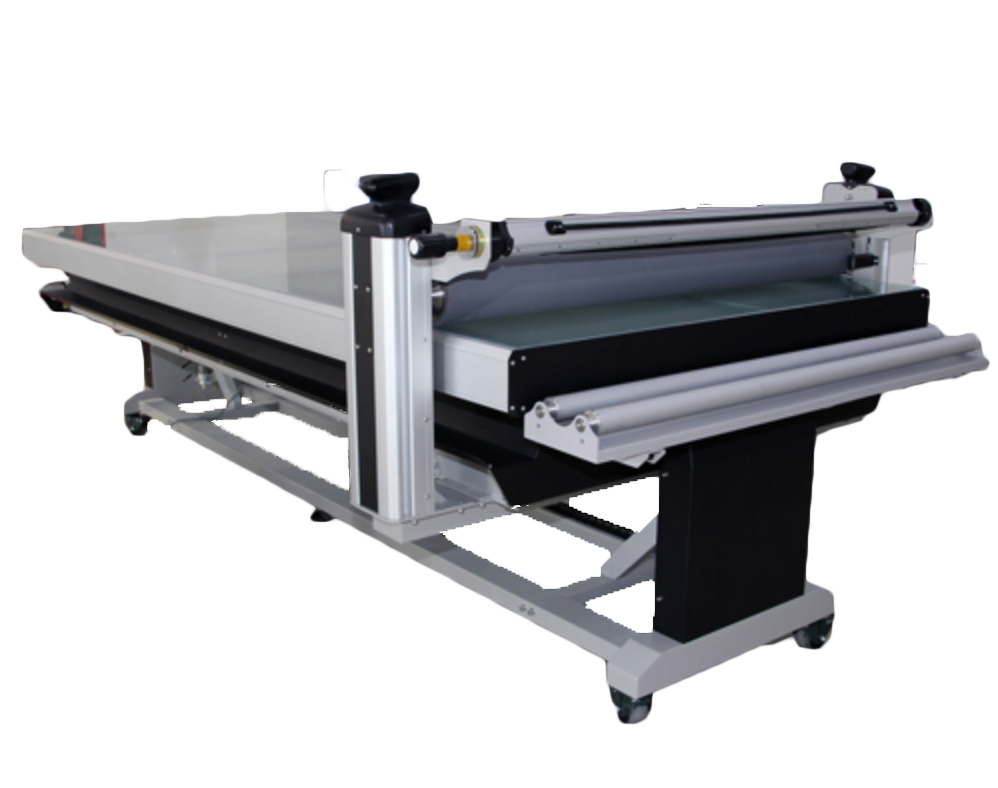

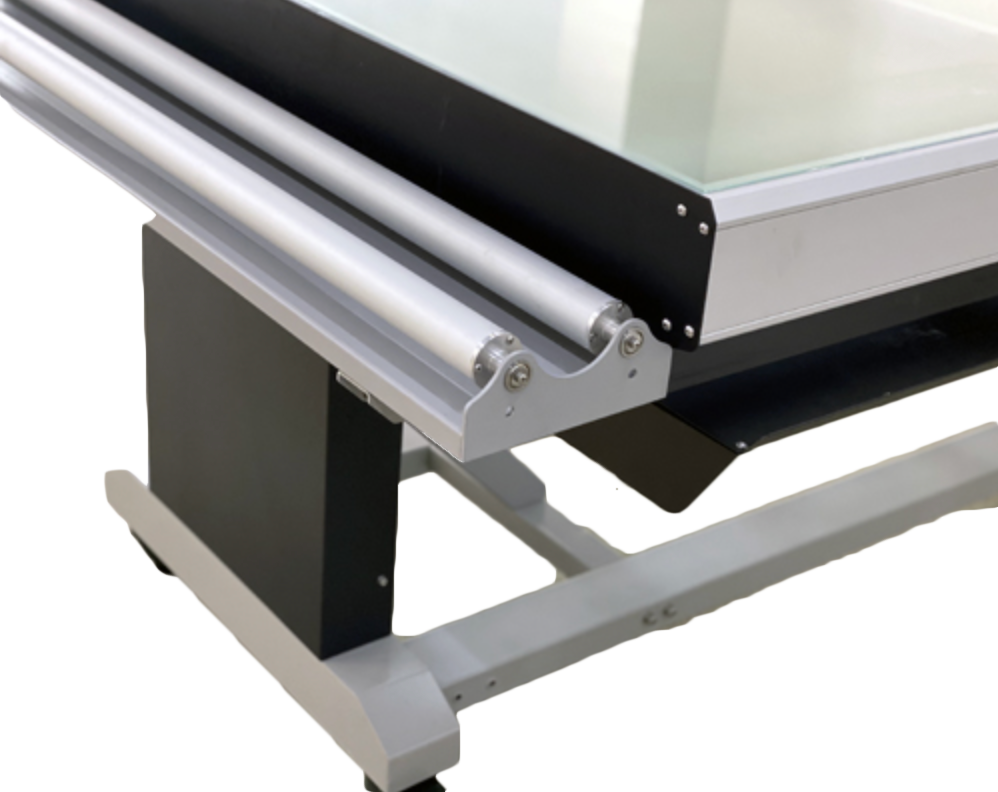

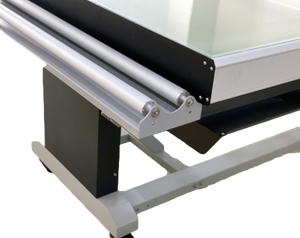

Machine with rear Roller
Working Table

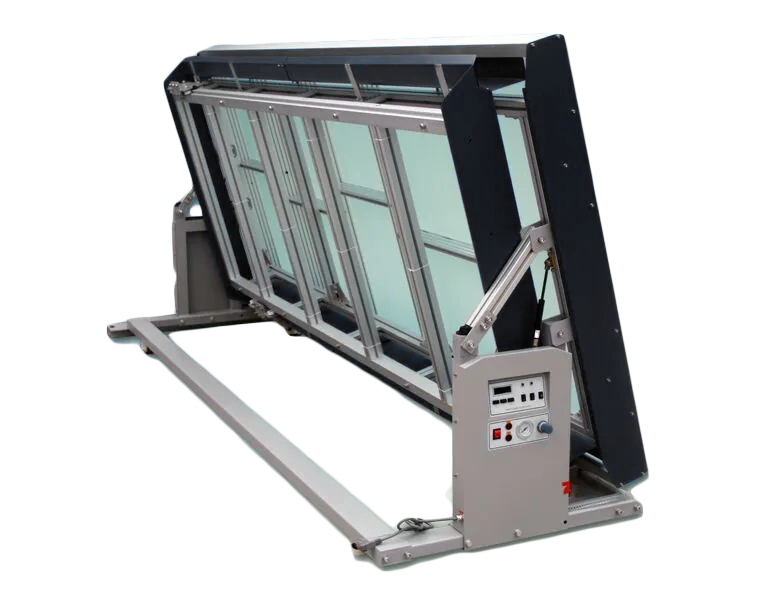

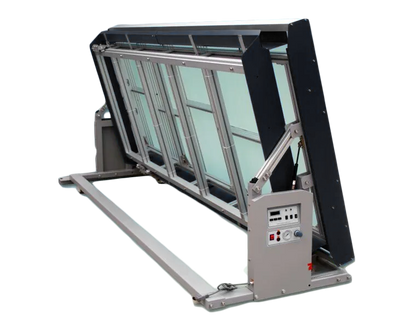

Tilted for Transport
|
3200x1200x1880mm
3410x1660x1215mm
3175x1405x900mm
3230x870x1605mm
|
|
Laminating Area
|
|
1300x2500mm |
|
Max Working Thickness
|
|
50mm |
|
Up/Down Adjustment
|
|
Pnuematic |
|
Roller Diameter
|
|
130mm |
| Rear Media Roll Holder |
|
Yes |
| Warm Laminate |
Infrared |
up to 60°C |
|
Preheating Time
|
|
10-15 min |
|
Power
|
|
2000w |
|
Voltage
|
|
220w |
|
Bed Surface
|
Matte Safety Glass
|
Matte Glass |
|
Light Assist
|
|
Under Table LED |
|
Certificate
|
|
CE; RCM, ROHS |
Product Brochure
Read the full specifications here.
